Rohde & Schwarz NRX Power Meter Plug In Multipurpose Practical
| 브랜드 이름: | Rohde and Schwarz |
| 모델 번호: | NRX |
| MOQ: | 1세트 |
| 가격: | 협상 가능 |
| 지불 조건: | 티/티 |
NRX RF power meter
,multipurpose power meter plug-in
,Rohde & Schwarz power meter
Rohde & Schwarz NRX Power Meter Plug In Multipurpose Practical

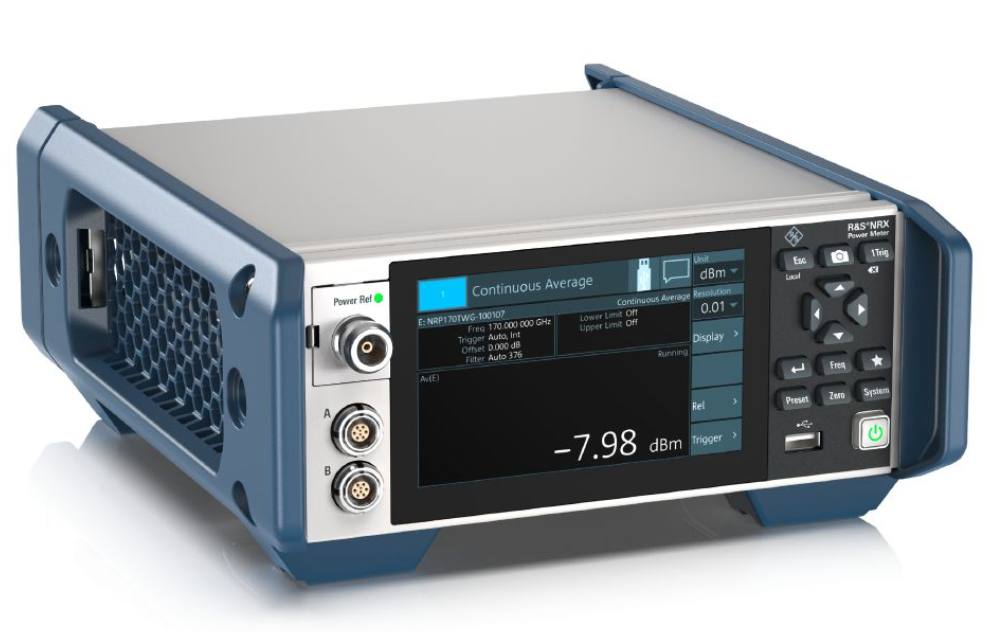

Description of Rohde and Schwarz NRX Power Meter
The R&S®NRX simultaneously supports up to four R&S power sensors and displays the results clear on the flexible configurable screen. The user interface with the touch screen based operating concept simplifies the operation. In addition function keys on the front panel provide quick access to the most important functions.
Key facts of NRX Power Meter
- Intuitive operation with touch screen based GUI
- Supports up to four R&S®NRP and R&S®NRQ6 power sensors
- Supports all sensor-dependent measurement functions
- Optional high-precision CW and pulse mode reference source module
- Optional power reflection measurements with NRT-Zxx sensors
The new power meter generation with modern and intuitive user interface
The NRX simultaneously supports up to four R&S power sensors (when adding options NRX-B4, NRX-K2 and NRX-K4) and displays the results clear on the flexible configurable screen. The user interface with the touch screen based operating concept simplifies the operation. In addition function keys on the front panel provide quick access to the most important functions.
The NRX supports:
- Easy RF power measurements
- Multi-channel measurements
- RF pulse analysis
- System integration
List of options for NRX
| NRX-B1 | Sensor check source 50 MHz and 1GHz ref. source |
| NRX-B4 | 3. and 4. NRP Sensor Connection (C,D,) 8-pole |
| NRX-B8 | GPIB/IEEE488 Interface |
| NRX-K2 | 2nd measurement channel |
Appendix Reading the uncertainty of multipath power sensors for relative power measurements
The example shows a level step of approx. 14 dB (–4 dBm → +10 dBm) at 1.9 GHz and an ambient temperature of +28 °C for an R&S®NRP8S power sensor. The expanded uncertainty for relative power measurements in this example is 0.093 dB.
